SMT PCB Pick And Place Assembly 42000CPH Modular Compact Machine

Ask Lasest Price
Brand Name :	Juki
Model Number :	RS-1
Certification :	CE
Price :	51000
Payment Terms :	T/T
Supply Ability :	The production capacity is 50 units a month
Delivery Time :	15-25

Add to Cart

Product Details
Company Profile

SMT PCB Pick And Place Assembly 42000CPH Modular Compact Machine

Automatic SMT Juki RS-1 Pick and and Place Machine Juki RS-1 Chip Mounter PCB Juki RS-1 pick and place machine for SMT Electronics Assembling Line Production

Product description

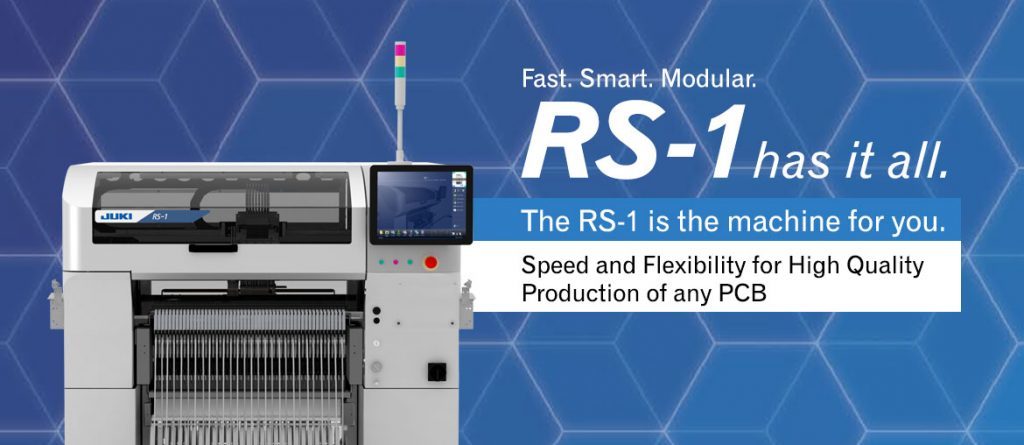

The JUKI RS-1 is a compact, high-speed modular pick-and-place machine designed for flexible, high-mix PCB assembly. Combining JUKI’s renowned reliability with advanced automation, it delivers 42,000 CPH with micron-level precision, making it ideal for prototyping, mid-volume production, and specialized applications.

SMT PCB Pick And Place Assembly 42000CPH Modular Compact Machine

Product specification

Model	JUKI RS-1
Placement speed	42000CPH (Optimum)
	29000CPH (IPC9850)
Board size	minimum	50x50mm
	maxmum (1 buffer)	650x370mm (single index )
		950x370mm (double index)
Component size	0201mm (008004″)~74mm square/50mm x 150mm
Conveyor specification	Standard
Component height	25mm
PWB thickness	0.3mm to 4mm
Placement accuracy	+/- 0.035 mm (CPK ≧1)
Feeder inputs	max. 112pcs (8mm feeder)
Power supply:	200 — 415VAC, 3 phase
Apparent power	2.2KVA
Operating air pressure	0.5+/-0.05Mpa
Air consumption	Max. 50L/min
Machine weight	1700kg
Machine Size	L1500xD1810xH1440mm

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
