SMD Lead Free Through Hole Pin Wave Soldering Machine UXT-350 With
DIP Soldering and THT Component Soldring For LED Lighting
Production Line
Description
UXT series is based on customer demand and adopts modular,digital
and humanized design.With superiority in function,performance,
stability, reliability, security, maintainability, operability and
humanization, it not only reduces the operating costs, but also
provides qualified products for quality, quantity and production
with strong guarantee, it is the peak work in the field of
soldering
equipment and the best choice and brand product of the customer.
●The transfer system uses sectional floating structure to prevent
deformation of transportation rai.Non-stick titanium fingers design
and directly connected to assure smooth PCB loading
●Spray flux er unit has integrated the mechanical moving body, gas
and liquids prayer and electrical control into one u in it, and
fast connect controller.New
precision spray nozzle ensures e ficient and even spraying, meeting
the needs of water soluble soldering fluxes.
●Preheating system consists of three nergy saving drawer tructure
preheating zones using hotair and infrared heating tube, allow
selection of mixed preheating mode and ensure temperature st ablity
●Air cooling system(coldwater cooling system isp tional) .
●The solder pot is made of special material with coating of
anti-corrosion, solder pot temperature is controlled+/-2℃.Twisting
design of nozzle is convenient for installation and removal, the
automatic flow guiding unit is convenient for solder dross
collection and adjustment of the wave shape.Solder pot can be
operated manually or automatically.
●Windows 7 operatingsystem, Chinese/English intelligent software,
parameter saving, reuse, remote monito ring functions.Saving and
loading parameter setting.Detecting the temperature profile.
Product Specification

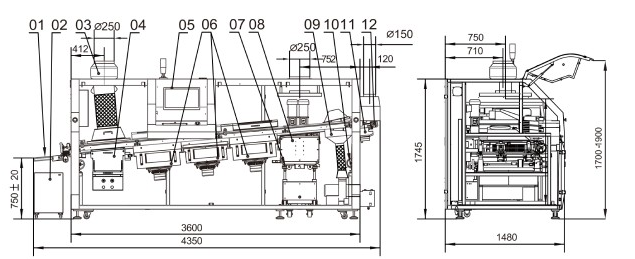

| Model | UXT-350 | UXT-450 | UXT-610 |
| Dimension:LxWxH(mm) | 4350*1480*1750 | 4350*1580*1750 | 4350*1740*1750 |
| Weigh | Approx.1800kg | Approx.1950kg | Approx.2150kg |
| Power Supply | 3PH 380V 50HZ | 3PH 380V 50HZ | 3PH 380V 50HZ |
| Startup Power | 32KW | 32KW | 45KW |
| Operation Powr Consumption | Approx.8KW | Approx.8.5kW | Approx.11KW |
| Control System | PC+PLC | PC+PLC | PC+PLC |
| Spraying movement | Step motor | Step motor | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa | 0.2Mpa-0.4Mpa | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option | Option | Option |
| Auto Fill Flux | Standard | Standard | Standard |
| Exhaust | Top exhaust+Side exhaust | Top exhaust+Side exhaust | Top exhaust+Side exhaust |
| ExhaustDucting Diameter(mm) | Φ250 | Φ250 | Φ250 |
| Exhaust Capacity | 30m³/min | 30m³/min | 30m³/min |
| Preheating Mode | Hot air Convection / IR | Hot air Convection / IR | Hot air Convection / IR |
| Control Mode | PID | PID | PID |
| Preheating Zone Number | 3 | 3 | 3 |
| Preheating Length(mm) | 1800 | 1800 | 1800 |
| Preheating Temperature | Room temperature~200℃ | Room temperature~200℃ | Room temperature~200℃ |
| Warm-upTime(min) | Approx.12min(setting:50℃) | Approx.12min(setting:150℃) | Approx.12min(setting:150℃) |
| Blower Motor | 50W 3PH 220VAC | 250W 3PH 220VAC | 250W 3PH 220VAC |
| PCB Width(mm) | 50-350 | 50-450 | 50-610 |
| Convoyor Direction | L-R(Option:R-L) | L-+R(Option:R-L) | L-R(Option:R-L) |
| Conveyor Speed(mm/min) | 500~1800 | 500~1800 | 500-1800 |
| Conveyor Height(mm) | 750±20 | 750±20 | 750±20 |
| Available Component Heigh (mm) | Top 120(Option: 240) Bottom 15 | Top 120(Optn: 250) Bottom 15 | Top 120(Option: 250) Bottom 15 |
| Conveyor Speed Control Mode | Closef-loop stepless speed regulationg Inverter | Closef-loop stepless speed regulationg Inverter | Closef-loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy
type double hook f inger,Options | Heavy type double hook f inger/
Opt on:Special jig for fixture |
| Conveyor Angle | 4-7° | 4-7° | 4-7° |
| Type of solder Pot | Motor drive | Motor drive | Motor drive |
| Solder Pot Material | Casting Iron | Casting Iron | Casting Iron |
| Wave Height Adjustment | Inverter Approx:Digital Control by PC |
| Cooling Method | Air Cooling Option:Watercooling |
| Heater Power | 13.5KW | 13.5KW | 18KW |
| Solder Pot Temperature | 300℃ | 300℃ | 300℃ |
| Solder Pot Capacity | Approx.480KG | Approx.550KG | Approx.640KG |
| Wave Drive Power | 180Wx23PH220VAC | 180W*23PH220VAC | 180Wx23PH220VAC |
| Approx.150min(setting:250℃) | Approx.150min(setting:250℃) | Approx.150min(setting:250℃) | Approx.150min(setting250℃) |
| Temperature Control Mode | PID | PID | PID |
| Finger Cleaning System | Brush | Brush | Brush |
Product details
UXT series oven is based on customer demand and
adoptsmodular,diaitaland humanized desian. With superiority in
function,performance,stability, rellability,security,
maintainability.operability and humanizalion,it not only reduces
the ooeratingcosts,but also provides qualified products for
qualitv, quantity andoroduction with slrong guarantee, it is the
peak work in the field olsoidering equipment and the best choice
and brand product of thecustomer.
The transier system uses sectional loating structure to prevent
deformation of transportation ral. Non-stick itanium ingers design
and direcly conected toassure smooth PCB loading.
Spray fluxer unit has integrated the mechanical moving body, gas
and liquid sprayer and electrical controlinto one unit, and fast
connect controller. Newprecision spray nozzle ensures efficient and
even spraying, meeting the needs of water soluble soldering
fuxesPreheating system consists of three nergysaving drawer
truclurepreheating zones using hot air and infrared healing tube,
allows elecionof mixed preheaingmode and ensure temperature
stability.
Air cooling system ( cold water cooling system is ptional ).
The solder pot is made of special material with coating of
ani-corosion, solder pot temperature is controlled +/-2'c. Twising
design of nozzle is convenienfor instalalion and removal, the
automatic iow guiding unit is convenient for solder dross colection
and adjustment of the wave shape. Solder pot can beoperated
manually or automatically.
Windows 7 operating system,chinese/English inteligent
software,parameter saving,reuse,remote monitoring functions.Saving
and loadingparametersetting.Detecting the temperature profile.
