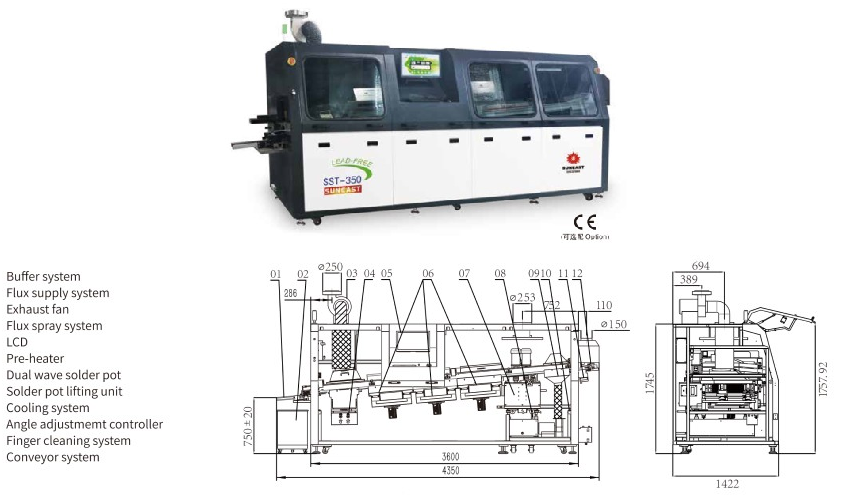

SMD Lead-free Wave Soldering SST-350 Series DIP Welding Equipment
With Tin Spray PCB Wave Solder For LED Lighting Production Line
Description
SST series is a fully upgraded wave soldering with enhanced
modular.digital and humanized design to meet customer needs, With
more perfect function,more advanced performance,further improved
stability and reliability,the operation and maintenance is more
convenient,and the customer operation cost is reduced more.
Conveyor:Direct buffering input structure.Stainless steel chain
conveyor, durable and special design for aluminum alloy track.Adopt
segment floating structure to prevent from deformation
Pre-heatingzones:Designforenergysavingandremovablemodules(drawerdesign).Anycombinationofinfraredandhotairconvection.Use
PID control to achieve±2℃accuracy.The temperature variation for
pre-heating zone and soldering zone is less than s 5℃
Flux spraying system:Managed by digital control.The motion of the
spray nozzle is controlled by stepper motor.
Flux supply is controlled automatically for optimized
effect.Exhausting and filter system installed on the top
The solder pot is made by cast iron with anti-corrosion ceramic
coating equipped with two low flowrate nozzles
Aircoolingsystem:coolingrate4-6℃/s(adjustable)
PC+PLC control system.Windows 7 operation system with
Chinese/English operation interface.Processing profile and data
auto saving function.Alarm for detecting the flux and solder level
Product Specification
| Modol NO | SST-350 |
| Dimension:LxWxH(mm) | 4350×1422×1750 |
| Weigh | Approx.1600kg |
| Power Supply | 3PH 380V 50HZ |
| Startup Power | 33KW |
| Operation Powr Consumption | 8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa~0.4Mpa |
| Flux Flow Arrange | option |
| Auto Fill Flux | Standards |
| Exhaust | Top exhaust |
| ExhaustDucting Diameter(mm) | Φ250 |
| Exhaust fan power | 750W |
| Preheating Mode | Convection / IR emitter |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-upTime(min) | Appro×.12min(setting:150℃) |
| PCB Width(mm) | 50~350 |
| Convoyor Direction | L→R(Option:R→L) |
| Conveyor Speed(mm/min) | 500~1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Heigh (mm) | Top)120,Bottom15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy
type double hook f inger,Options |
| Conveyor Angle | 4~7° |
| Type of solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Digital Control by PC |
| Cooling Method | Air Cooling Option:Water cooing |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300°℃ |
| Solder Pot Capacity | Approx.480KG |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting:250℃) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
Product details
SST series is a fully upgraded wave soldering with enhancedmodular,
digital and humanized design to meet customerneeds,With more
perfect function, more advanced performancefurther improved
stability and reliability, the operation andmaintenance is more
convenient,and the customer operationcost is reduced more.
