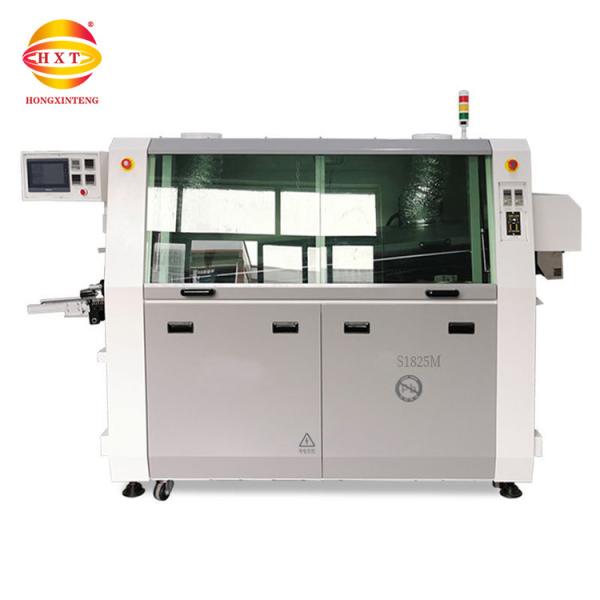

Fully Automatic Dip Soldering Machine Inline 250 Lead-free Touch Screen Control Economy Mini Wave Soldering Machine For Dip Assembly Line with CE certificate

Description

Brief introduction of wave soldering machine with touch screen
The touch screen controlled wave soldering machine is an automated device for soldering printed circuit board PCB through-hole components using a"Wave" of molten solder. Its intelligent touch screen control system greatly improves the operation convenience and process accuracy, which is suitable for consumer electronics, automotive electronics, industrial control and other fields.

Key features

1. Intelligent Touch Screen Control
Full-color high-definition touch screen interface, support, one-button operation, real-time monitoring of temperature, speed, wave height and other parameters. Multi-group welding formulas can be stored, different product processes can be quickly switched, and debugging time can be reduced.

2. High Precision Temperature Control System
Independent Temperature Control (preheating zone, welding zone, cooling zone) , temperature difference control accuracy of ± 1 °C, avoid thermal shock damage components.

3. Adaptive Crest Technique
Double wave crest design (spoiler wave + advection wave) , suitable for different component types (such as through hole, SMD Mixed Board) .

Wave height, width, flow rate adjustable, suitable for high-density PCB or large pad soldering needs.

4. Energy efficient design
The use of frequency conversion drive technology, reduce energy consumption by more than 30% .

intelligent sleep mode, no production tasks when the automatic cooling energy saving.

How it works
1. The warm-up phase
PCB passes through the preheat zone (80-150 °C) , removing substrate moisture and activating flux to avoid air bubbles during soldering.

2. Welding stage
Molten solder (usually tin-lead or lead-free alloy at 250-260 °C-RRB- forms a steady crest through the nozzle, the bottom of PCB PCB is in contact with the crest, and the solder fills the vias and wets the pins.

3. Cooling phase
Forced air cooling or natural cooling solidification solder joints, complete the welding process.

4. Touch screen control core
Through the sensor real-time data acquisition, touch screen dynamic adjustment parameters (such as conveyor belt speed, wave shape) , to ensure the consistency of the process.

Product Specification

Application

Automotive Electronics: ECU controller, sensors and other high-temperature reliability requirements of high welding.
LED lighting: aluminum substrate, high-power LED module through-hole welding.
Home Appliance Control Board: Power Module, Connector and other high-density PCB assembly.
