    Automatic High Strength PCB Loader Machine SMT Handling Equipment

    SMT Automatic PCB Unloader 250mm Single Rail / Double Rail NGOK Magazine Unloader Machine Equipment For smt Production Line Electronic Assembling

    Product introduction


    ●Appearance structure: sheet metal structure and aluminum profile into the frame, the surface is sprayed, and the color is corrugated white.

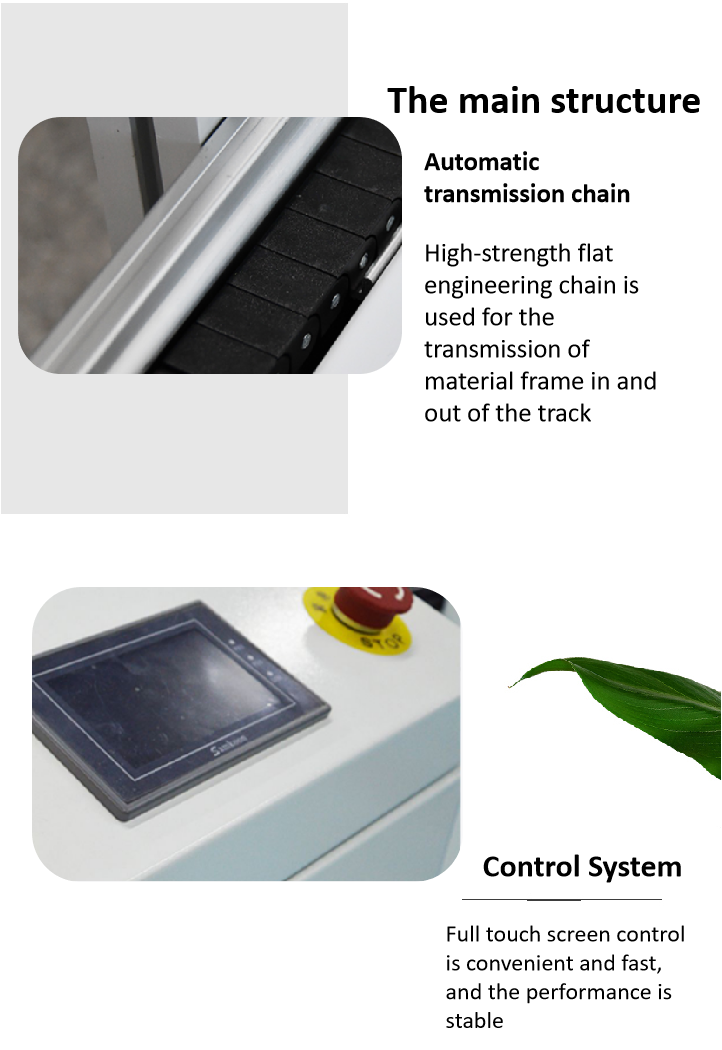

    ● Microcomputer PLC control system, stable and reliable.

    ● Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.

    ●Multiple sound and light and touch screen alarm function.

    ● The lifting step of the rack can be set according to the thickness of the PCB.

    ● With automatic counting function, it is convenient for production statistics.

    ● Humanized design ensures that the PCB board will not be broken, improving output capacity

    The lower connection receives the PCB board and uses the motor to send the board to the material frame

    ●Using stepping motor to push the plate, the strength can be adjusted, and the speed can be set on the touch screen.

    The push plate device adopts two limit positions to protect the PCB board

    ●Good boards and bad boards can be separated from top to bottom, and the number of layers can be set.

    ●Double line numbers distinguish between NGOK



    Product Specification

    Product information
    Device model250330390
    Applicable frame size355*320*563mm460*400*563mm535*460*563mm
    PCB board size (MM)350*(50-250)450*(50-330)530*(50-390)
    PCB thickness0.6-3.0mm0.6-3.0mm0.6-3.0mm
    transfer speed10S/PCS10S/PCS10S/PCS
    Transport height900±20mm900±20mm900±20mm
    delivery weight60-2000g60-2000g60-2000g
    Dimensions (L*W*H)1500 x 1500 x1300mm1900*1600*1250mm2100*1750*1250
    body weightAbout 200kg380KG420KG
    Starting power/no-load power200W250W300W
    Power supply and negative charge220V AC, single phase
    Step selection1~5 steps (10mmstep distance)
    Supply air source4-6kg
    Fixed sideFront fixation (rear fixation can be customized)
    Transmission directionLeft to right (can be customized from right to left)
    Number of storage boxes2pcs
    Conveying directionL-R/R-L optional
    Withstand voltageAC terminal to ground 1500VAC, 1 minute
    Use environmentEnvironment free of corrosive gas and dust
    Anti-jammingVoltage noise: 1000Vp-p, wave width 1us, 1 minute
    Transfer and connection push PCB boardUsing stepping motor (42*48)
    Parallel transfer sub-NGOK PCBAdopt 86 high-precision stepping motor
    Translation load transmission deviceImported steel wire synchronous belt
    NG line numberAutomatically move to the NG storage frame (the storage frame can be automatically entered and exited)
    OK line numberAutomatically enter the OK box through the translation platform
    Component brand
    transport motorChinese University of Taiwan
    control moduleSIEMENS PLC
    Lifting stepper motorChinese University of Taiwan
    The electromagnetic valveAirTAC
    LiftsOne piece cast aluminum seat
    Three-color lightOwen LED light
    Signal communication interfaceOnline Connection (Standard SMEMA)

    Product details



    Applications:

    Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
