    Accurate PCB Loader And Unloader Consistent Improving Overall Production Efficiency

    Ask Lasest Price
    Brand Name : HXT
    Model Number : HXT-L250
    Certification : CE
    Price : 1600
    Payment Terms : T/T
    Supply Ability : The production capacity is 100 units a month
    Delivery Time : 5-15
    • Product Details
    • Company Profile

    Accurate PCB Loader And Unloader Consistent Improving Overall Production Efficiency

    High Accuracy Full Automatic SMT Loader Machine PCB Loader And Unloader Machine SMT With Magazine loader


    Description

    PCB Loader Machines are essential components of modern SMT production lines, designed to automate the loading of printed circuit boards (PCBs) onto the conveyor system. These machines ensure accurate, consistent, and efficient handling of PCBs, reducing manual intervention and improving overall production efficiency.

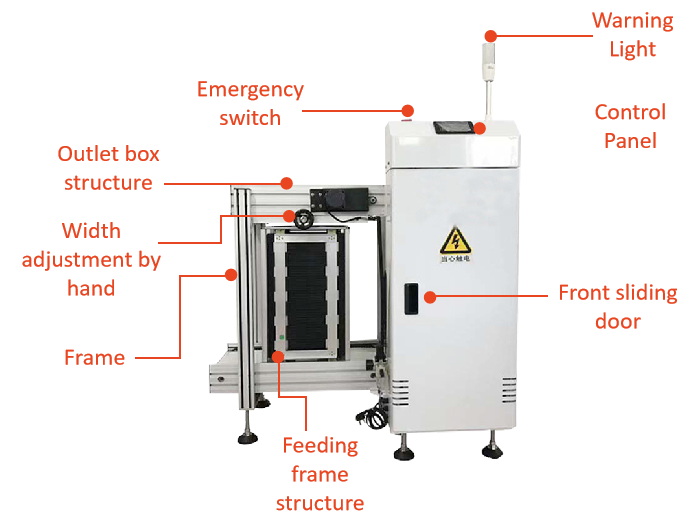

    Appearance structure: sheet metal structure and aluminum profile into the frame, the surface is sprayed, and the color is white.

    ● Microcomputer PLC control system, stable and reliable.

    ● Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.

    ●Multiple sound and light and touch screen alarm function.

    ● The lifting step of the rack can be set according to the thickness of the PCB.● With automatic counting function, it is convenient for production statistics.

    ● Humanized design ensures that the PCB board will not be broken, improving output capacity

    Product Specification

    Product information

    Sr. No.

    Model

    HXL-L250

    HXT-L330

    HXT-L390

    1

    Applicable frame size

    355*320*563mm

    460*400*563mm

    535*460*570mm

    2

    PCB board size (MM)

    350* (50-250)

    460* (50-330)

    510 (50-390)

    3

    PCB thickness

    0.6-3.0mm

    0.6-3.0mm

    0.6-3.0mm

    4

    Number of storage boards

    50PCS

    50PCS

    50PCS

    5

    Teleport height

    900±20mm

    900±20mm

    900±20mm

    6

    Delivery weight

    60~200og

    60~200og

    60~200og

    7

    Body size L*W*H (MM)

    1150*800*1300

    1550*800*1300

    1650*870*1300

    8

    Body weight

    180KG

    200KG

    250KG

    Control System

    9

    Power supply

    Single phase 220V

    Single phase 220V

    Single phase 220V

    10

    Starting power/no-load power

    105W

    105W

    205W

    11

    Lifting step

    10, 20, 30, 40, 50 (mm) can be set arbitrarily

    10, 20, 30, 40, 50 (mm) can be set arbitrarily

    10, 20, 30, 40, 50 (mm) can be set arbitrarily

    12

    Compressed air

    5-6KG

    5-6KG

    5-6KG

    13

    Fixed side

    Front fixation (rear fixation can be customized)

    14

    Transmission direction

    Left to right (can be customized right to)

    15

    Step selection

    1~5 steps (10 mm step distance)

    16

    With stand voltage

    AC terminal to ground 1500VAC, 1 minute

    17

    Use environment

    Environment free of corrosive gas and dust

    18

    Anti-jamming

    Voltage noise: 1000Vp-p, wave width 1us, 1 minute

    19

    PLC

    Siemens (dedicated controller)

    20

    Touch screen

    Samkoon4.3# smart touch screen

    21

    Transfer speed

    10S/PCS

    Accessories Brand

    22

    Control module

    SIEMENS PLC

    23

    Transport motor

    Chinese University of Taiwan

    24

    Lifting stepper motor

    Chinese University of Taiwan

    25

    The electromagnetic valve

    Air TAC

    26

    Lifts

    One piece cast aluminum seat

    27

    Three-color light

    Owen LED light

    28

    Signal communication interface

    Online Connection (Standard SMEMA)

    29

    Sensor

    OMRON


    Product details



    Accurate PCB Loader And Unloader Consistent Improving Overall Production Efficiency

    Applications:

    Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
