Automatic DIP Universal Radial Insertion Machine Axial Insertion Machine

Ask Lasest Price
Brand Name :	INSERT
Model Number :	IST-F6000-4
Certification :	CE
Price :	25500USD
Payment Terms :	T/T
Supply Ability :	The production capacity is 200 units a month
Delivery Time :	5-15

Add to Cart

Product Details
Company Profile

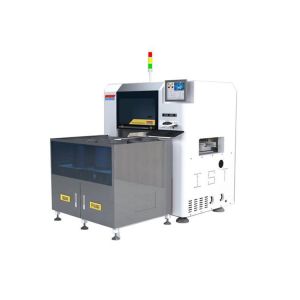

Automatic DIP Universal Radial Insertion Machine Axial Insertion Machine

High Speed Automatic SMT Insert Chip Mounter IST-F6000-4 and Plug-in Automatic Pin Insertion Machine For DIP Production Line

Product Introduction

The F6000-4 series machines are the latest and most practical special-shaped plug-in machines, with independent multiple sets of servo control systems and high-precision visual
capture systems, achieving high and stable plug-in performance, achieving perfect effects of
high speed and high density. The system can be upgraded to lay a solid foundation for updating
and accelerating your equipment. A simple and easy to understand operating platform enables
human-machine interface dialogue, and the combination of practical experience and scientific
theory brings you the improvement of product quality and production efficiency

Product Specification

IST-F6000-4
Theoretical velocity	6000 CPH/hour
Plug-In drection	0-360 degree inaemert 1 degree
Quantity of insertion	4
Subshale size	Minimum 50mm50mm up to 400mm450mm exceeding selecfon of F300D Seies equipment
Substrate thicknes	0.59-2.36mm
Component specifications	The maximum height is 50mm and the maximum weight is 03KG
Material staion channel	1-4
Feed mode	Braided Feida,tube mourted Feida,automafic pallet,vibraion disc(aptianal)
Mode of insertion	Mechanicad dampng
PCB protecion	Pressure prolecian
PCB visian	MARK Poirt and demert Hole matding Veian system
Materid visian	Neede fp surface recognifon
Equipment shape size (length X widthX heigh)	Hast size:1600mmx 1600mmx 1900mm Mateda station sire:800mmx 800mmx 600mm
Machine weigh	1500KG
Use power I power	220V.AC(singe phase)50 s60Hz,2.0KVA 1.6KW(enengy saing type)
System protecian	Buil-in sot prolection
Use vdtage/gas cansumpfon	0.6-0.8Mpa/0.3 cubic/mnute
Use of ambient lemperaure	5-30 degrees
Macine ndise	50 decds
Hde pasihan comecfian mode	Machine visian systen,multi-pairt MARK vision correcian
Drie sysbem	AC serva,AC mdta
Data irput mode	USB interface input(EXCE dacument format)
Crauit baard transportafian mode	Automafc upper and lower board let to right right to let opfonal

Applications:

Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
