Full Automatic Bga Rework Station Automatic Bga Rework Station
Price Rework Station Bga Smt Line Machine Bga Rework Soldering Station Smd Rework Station
Description

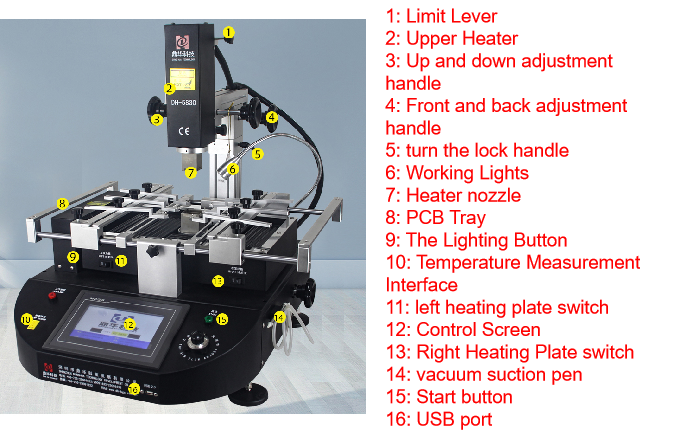

Functional characteristics:
1. High brightness LED lamp shadowless lighting, check the
motherboard chip at a glance bad;
2. Breeze adjustment function, according to the chip size to adjust
different wind speed, repair more efficient, welding small chip
will not blow away;
3. External USB interface, a variety of repair data can be imported
into the computer analysis and storage;
4. With vacuum suction pen, it is more convenient to take and put
chips;
5. External temperature measuring interface, more accurate
temperature detection;
6. Touch screen operation, built-in intelligent repair procedures,
repair data real-time display and automatic analysis, let you
become a technical god seconds; 7. Suitable for a variety of chip
rework (POP, SOP, SOJ, QFP, QFN, BGA, PLCC, SCPP...)
Product Specification
power | AC220V±10％50/60Hz |
Total Power | 5500W |
Top heater | 1200W |
Bottom heater | The second temperature range is 1200W |
Bottom heater | 3000W (German heating brick, heating area 220 × 350mm) |
Operation mode | Touch Screen + manual alignment |
Basic configuration | Industrial Control Motherboard + 7-inch digital touch screen +
grinding grade guideway (Taiwan Shangyin) + Dalian Institute of
Technology 10-channel Temperature Control System + American omega
temperature measurement system + high thermal efficiency heating brick |
Dimensions | L500×W600×H650 mm |
Chip feeding system | Manual picking and discharging |
Temperature profile storage | 5000 sets |
Positioning | Upper and lower intelligent positioning, bottom“5-point support”
with v-shaped slot fixed PCBA, PCBA can be adjusted along the X
direction, while the external universal fixture |
Temperature control | K-type thermocouple (K Sensor) Closed loop control (Closed loop-RRB- + 8 section temperature control programming
settings |
Temp accuracy | ± 2 degrees |
CCD system | Manual alignment |
PCB size | Max 370×390 mm Min 22×22mm |
BGA chip | 2X2-80X80mm |
Gas source | Built-in vacuum pump, no external air source |
BGA absorption mode | Vacuum suction pen + tweezers |
BGA weight | 5-200g (special specifications can be customized) |
Minimum chip spacing | 0.1mm |
External Temperature Sensor | 1, optional |
Machine type | Desktop + special desk (optional) |
Net weight | 45kg |
Product description
1. Embedded Industrial Control Computer, high-definition
touch-screen human-machine interface, heating temperature, time,
slope, cooling, vacuum are all set on the human-machine interface,
real-time display settings and measured temperature curve, and has
the instantaneous curve analysis function, carries on the analysis
correction to the curve in real time;
2. There are three temperature zones which can be heated
independently, and each zone can be set up with 8-stage temperature
control. The three temperature zones adopt independent PID
algorithm to control the heating process. Large preheating
temperature zone, PCB preheating equilibrium deformation;
3. It can store 9999 sets of temperature curves and call them
according to different BGA at any time. It can also analyze, set
and modify the curves on the touch screen, to facilitate domestic
and foreign customers barrier-free use;
4. High-precision K-type thermocouple closed-loop control and
temperature automatic compensation system can achieve accurate
temperature control and keep temperature deviation at ± 2 degrees.
At the same time, the external temperature measuring interface
realizes the precise detection of temperature, and the accurate
analysis and calibration of the measured temperature curve;
5. The positioning of PCB board adopts v-shaped slot, flexible and
convenient movable universal fixture can protect PCB board, prevent
PCB edge damage and PCB deformation, and satisfy the positioning of
different size PCB board
6. With double password protection, to prevent the program and
parameters are arbitrarily modified or accidentally deleted, with
superior security protection functions;
7. Equipped with a variety of alloy nozzle, the nozzle can be 360
degrees arbitrary rotation positioning, easy to install and
replace;
8. After the upper and lower hot air stop heating, the cooling
system starts automatically, and the high-power cross-flow fan
cools the PCB board quickly to prevent the PCB board from being
deformed, and the cooling system stops automatically when the
temperature drops to normal temperature, ensure that the machine
will not be in heat aging, effectively extend the service life of
equipment;
9. Built-in vacuum pump, no external air source, in any place can
be used directly on the power supply, not limited by the air
source, external vacuum suction pen, for easy access to BGA chip;
10. USB interface, easy to download the current curve to the U disk
storage, and can plug in the mouse to use, extend the use of touch
screen time;
11. Configure voice-activated"Early warning" function. 5-10 seconds
before the completion of the dismantling and welding to alert the
workers to prepare by voice control; 12. After CE certification,
equipped with emergency switch and emergency automatic power-off
protection device, in the case of temperature out of control, the
circuit can automatically power-off.
Applications:
Widely used in electronics manufacturing, consumer electronics,
automobile electronics, communications equipment, aerospace,
medical equipment, LED lamps, computers and peripherals, smart
home, smart logistics, miniature and high power ratio electronic
devices.
