Standard Equipment Introduction
CY-500 multi-group multi-knife automatic board feeding machine can
split the whole board at one time:
It can be connected with the upper and lower triggers to realize
unmanned operation.
Easy installation and simple operation and setting.
Save employees, save time and effort.
Small footprint, efficient and fast operation.

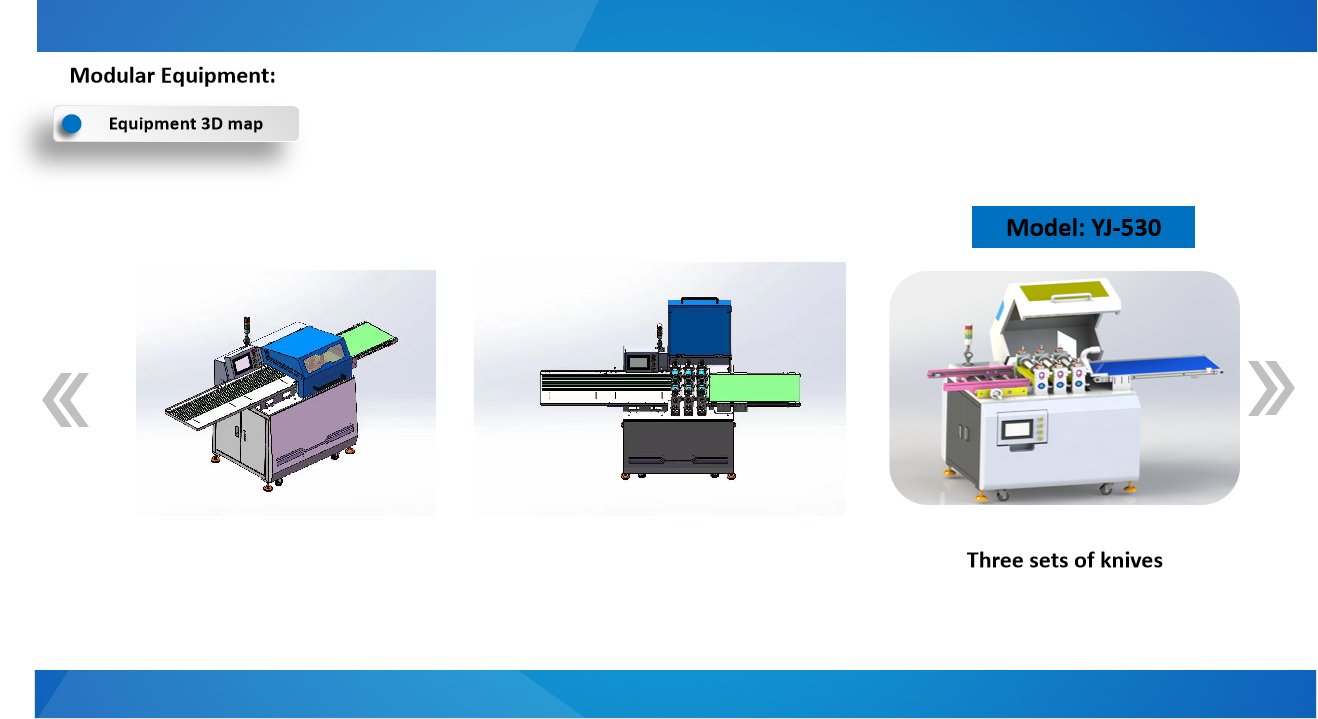

According to the number of different modules when the equipment
leaves the factory, the equipment series and models are
distinguished:
Number of modules: CY-510
Number of two modules: CY-520
Number of three modules: CY-530
Selection recommendation:
0-500mm, glass fiber board, aluminum substrate is recommended to
use CY-510;
500-900mm, glass fiber board, aluminum substrate is recommended to
use CY-520;
≧900mm, glass fiber board, aluminum board is recommended to use
CY-530.
Equipment Analysis and Evaluation
Program Analysis and Evaluation:
Equipment scheme analysis:
1. Divide into two products, separate PCBA board and light strip
board.
The same equipment: different board types use different numbers and
different types of modules.
Figure 1 divides the PCBA board, and Figure 3 divides the light
strip.
Track feeding: Compatible with split PCBA products and light bar
products.
Equipment program evaluation:
1. Practicality: The equipment is compatible with split PCBA and
light strips. The initial production and design of the product is
to meet the customer's vision of product diversification and
high-efficiency operation.
2. Versatility: ①The minimum cutting width of PCBA: 4mm; ②The
maximum width of the total board should be less than: 300mm.
3. Customization: The equipment can be customized to meet the
increasing usage needs of customers through customization.
4. Explanation: As shown in the legend, the same type of equipment
is used. Figure 3 shows the manual feeding and platform feeding
method.
Product Specification
| Project | YJ-500 |
| 00 Name | Multi-knife splitter |
| DimensionsL/W/H | 1850mm*850mm1100mm |
| Tool size | Round knife ϕ80mm |
| Tool material | SKD11 imported high-quality high-speed steel |
| Sub-board thickness | 0.5-3mm plate thickness (V-CUT depth, one-third of the plate
thickness) |
| Unit output | About 1500PC/h |
| Tool life | About 500,000 times |
| Sub-board length | 50mm-∞mm |
| Board speed | 0mm-500mm/s (speed adjustable motor, adjustable speed) |
| Board width | 4mm-300mm |
| Working pressure | 0.5-0.8map |
| Operating Voltage | 220V/110V optional |
| Equipment power | 200W |
| Total Weight | About 160kg |
Product details
Program Analysis and Evaluation:
Customized Analysis:
1. Demand customization: The equipment is compatible with many
types of products and can be customized according to customer
needs.
Customization of knife molds: knife molds can be customized
according to customer product segmentation needs.
The cutter is adjustable, the picture 1 is compatible with
splitting PCBA boards of different styles, and the picture 2 is
used to split light strips of different widths.
Customized Assessment:
1. Feasibility: mature equipment and mature scheme design, and make
derivatives and combinations of other successful cases on the basis
of the original maturity.
Customized design: three major customized design parts:
① Customization of incoming and outgoing materials;
② Customization of die cutting; ③ Design of cutting board.
Versatility: ①The minimum cutting width of the PCBA board edge:
4mm; ②The maximum width of the total board should be less than:
300mm.
Note: The product feeding method is selected according to customer
needs.
After-sales and Quality Assurance:
1. National free service hotline: 16620793861.
2. Commitment: Warranty period: 1 year, lifetime maintenance.
Response time: After receiving user notification, professional
technicians will provide door-to-door service within 24 hours
(local) and 72 hours (off-site), guaranteeing 24-hour uninterrupted
after-sales technical service support; repair time: 48 hours.
3. Free warranty: free warranty during the warranty period, and
spare parts and maintenance services at reasonable prices after the
warranty period.
4. Free training: On the day of the training, free on-site
equipment operation training will be given to the technical
personnel of the purchaser to ensure that the personnel of the user
can master the conventional methods of use of various equipment and
software, as well as the judgment and resolution of minor faults.
Applications:
Widely used in electronics manufacturing, consumer electronics,
automobile electronics, communications equipment, aerospace,
medical equipment, LED lamps, computers and peripherals, smart
home, smart logistics, miniature and high power ratio electronic
devices.
